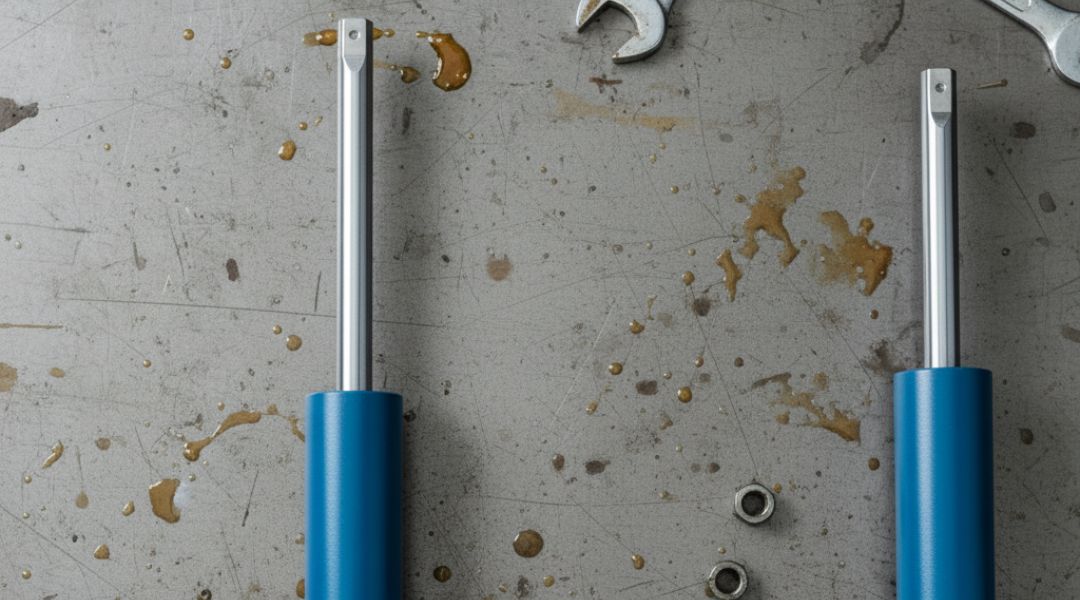

Single Acting vs Double Acting Hydraulic Cylinders: Which One Do You Need?

Hydraulic cylinders are essential components in hydraulic systems, converting fluid power into linear mechanical force. Choosing between a single acting and double acting hydraulic cylinder plays a major role in system efficiency, cost, and performance.

This guide will help you understand the differences, advantages, and applications of both types so you can choose the right hydraulic cylinder for your needs.

What is a Single Acting Hydraulic Cylinder?

A single acting hydraulic cylinder uses hydraulic pressure to move the piston in only one direction. The return stroke is achieved using gravity, spring force, or an external load.

Applications

• Hydraulic jacks
• Dump trucks (tippers)
• Lifting platforms
• Agricultural machinery

Advantages

• Simple construction
• Lower cost
• Reduced oil requirement

What is a Double Acting Hydraulic Cylinder?

A double acting hydraulic cylinder uses hydraulic pressure for both extension and retraction, giving full control over motion in both directions.

Applications

• Industrial machinery
• Hydraulic presses
• Automation systems
• Construction equipment

Advantages

• Precise control
• Higher efficiency
• Ideal for heavy-duty operations

Single Acting vs Double Acting: Comparison

Parameter	Single Acting	Double Acting
Motion	One Direction	Both Directions
Return Stroke	Spring / Gravity / Load	Hydraulic Pressure
Control	Limited	Full Control
Cost	Lower	Higher
Best Use	Simple lifting	Heavy & precision work

Which Hydraulic Cylinder Should You Choose?

Choose a single acting cylinder for simple lifting tasks where cost and simplicity matter. Choose a double acting cylinder for industrial, automated, or heavy-duty applications requiring precision and control.

Conclusion

Both single acting and double acting hydraulic cylinders serve important roles. The right choice depends on load requirements, control needs, budget, and application complexity.

At Shree Laxmi Engineering & Services, we manufacture and supply custom hydraulic cylinders designed for durability, efficiency, and long service life.
